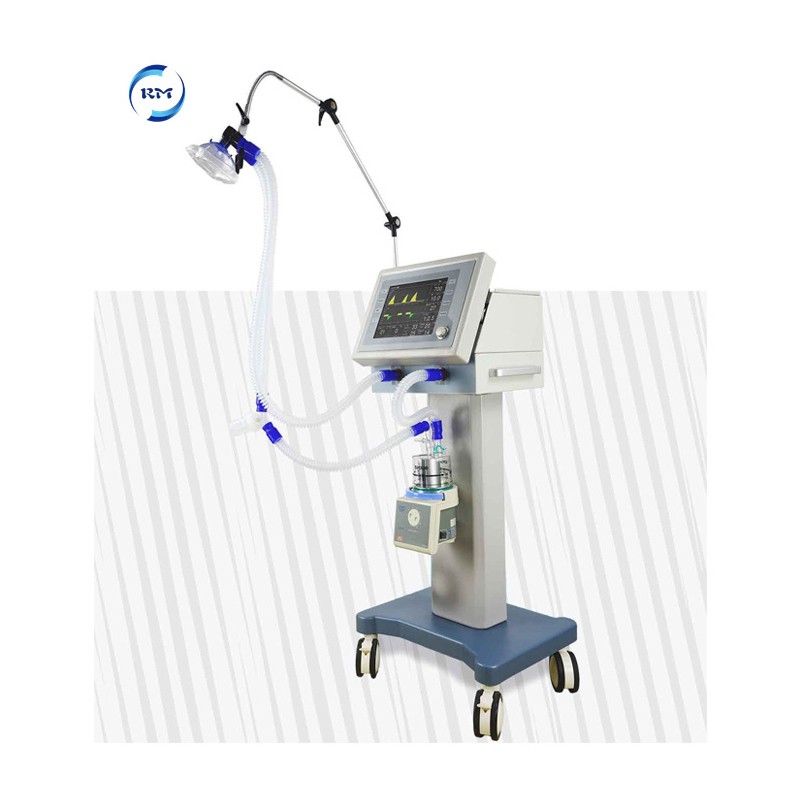

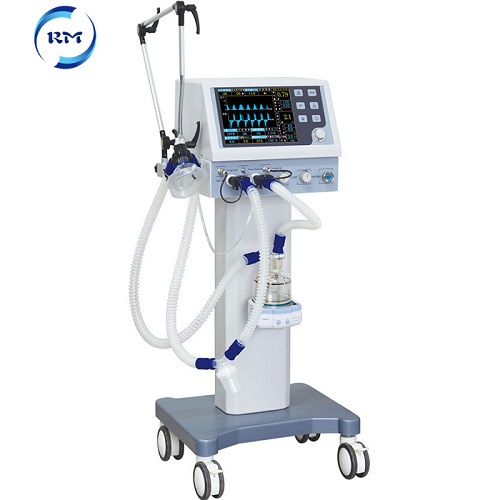

Ventilator Machine

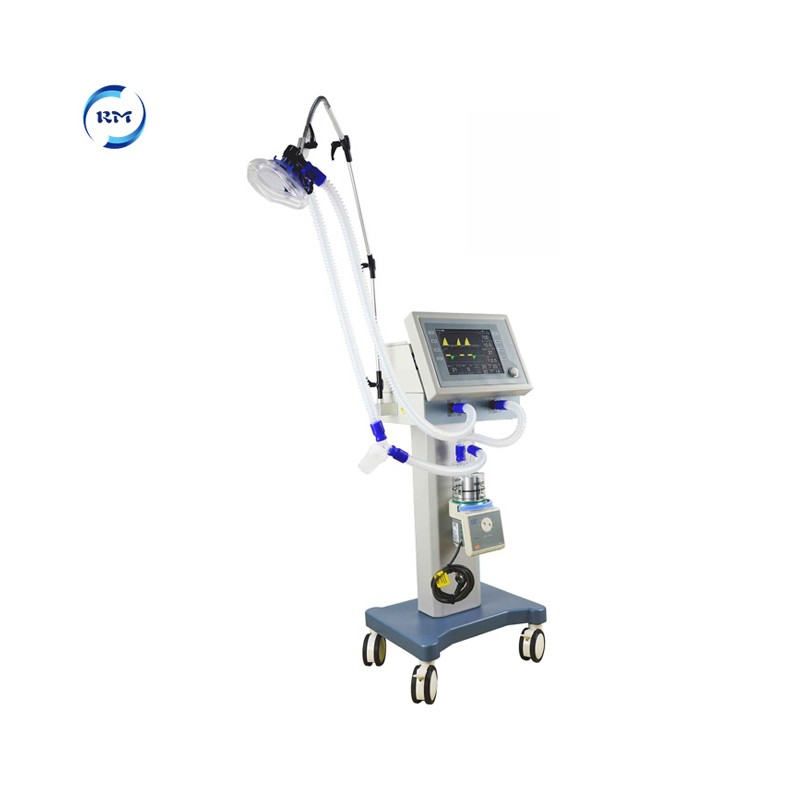

ICU ventilator, also known as intensive care unit ventilator, is a crucial medical device.

In the ICU, patients with severe respiratory failure or those who are unable to breathe on their own effectively rely on these ventilators. The ICU ventilator is designed to deliver a controlled amount of oxygen and remove carbon dioxide from the patient's lungs. It can adjust the breathing rate, tidal volume (the amount of air inhaled and exhaled with each breath), and pressure to meet the specific needs of different patients.

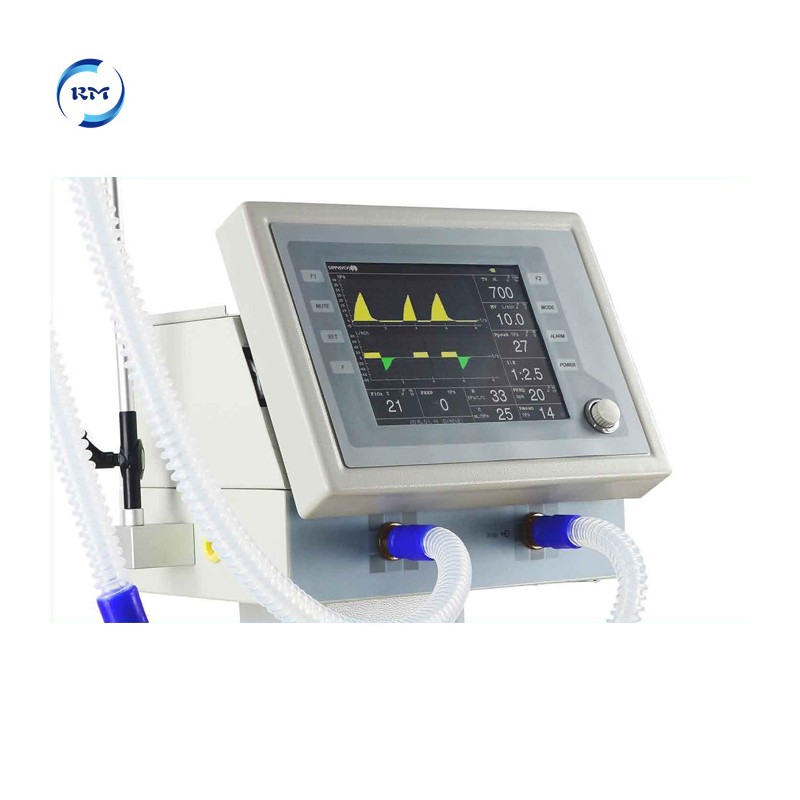

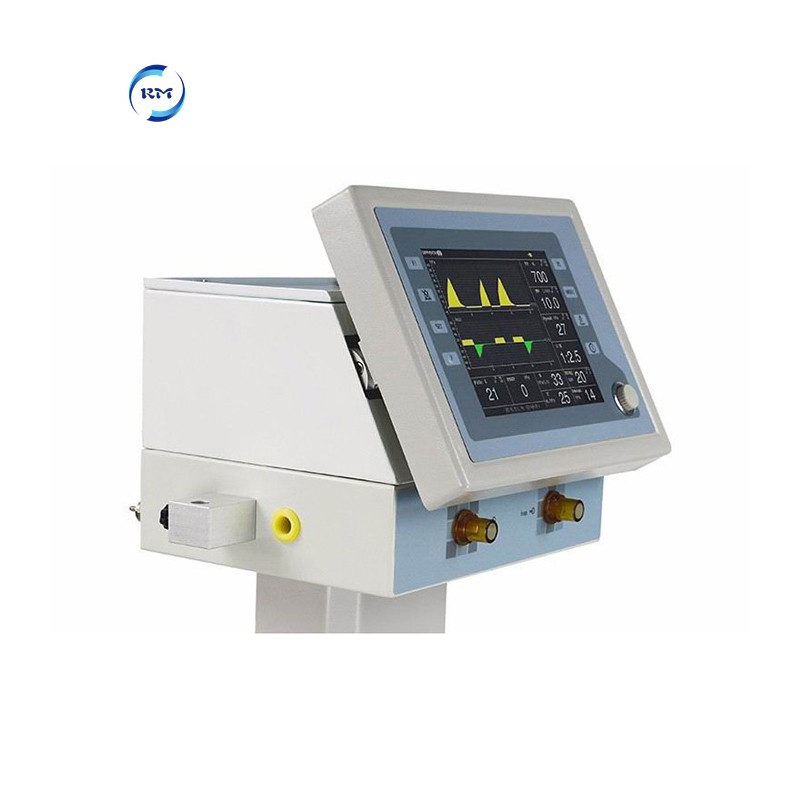

These ventilators are equipped with advanced monitoring systems that can display various parameters such as airway pressure, oxygen concentration, and respiratory rate in real time. This allows medical staff to closely monitor the patient's respiratory status and make necessary adjustments promptly.

The ICU ventilator plays a vital role in saving the lives of critically ill patients by providing artificial respiration support and maintaining their respiratory function.

In the intensive care unit (ICU), the use of ventilators is a complex and crucial process. Here is a detailed introduction to the usage method of ICU ventilators:

I. Preparation before use

1. Equipment inspection:

• Check the ventilator to ensure it is in good working condition. Inspect for any damage or malfunction.

• Verify that all necessary accessories such as breathing circuits, filters, and masks are available and in proper  condition.

2. Patient assessment:

• Conduct a comprehensive assessment of the patient's condition, including respiratory rate, oxygen saturation, lung sounds, and consciousness level.

• Determine the appropriate ventilation mode and settings based on the patient's specific needs.

II. Connecting the ventilator

1. Connect the breathing circuit:

• Attach the appropriate breathing circuit to the ventilator. This may include an endotracheal tube, tracheostomy tube, or non-invasive mask.

• Ensure all connections are secure and free from leaks.

2. Set up the monitoring devices:

• Connect the patient to monitoring devices such as pulse oximetry, blood pressure monitors, and electrocardiogram (ECG) machines.

• Set up alarms on the ventilator and monitoring devices to alert the medical staff in case of any abnormal changes.

III. Setting up the ventilator parameters

1. Select the ventilation mode:

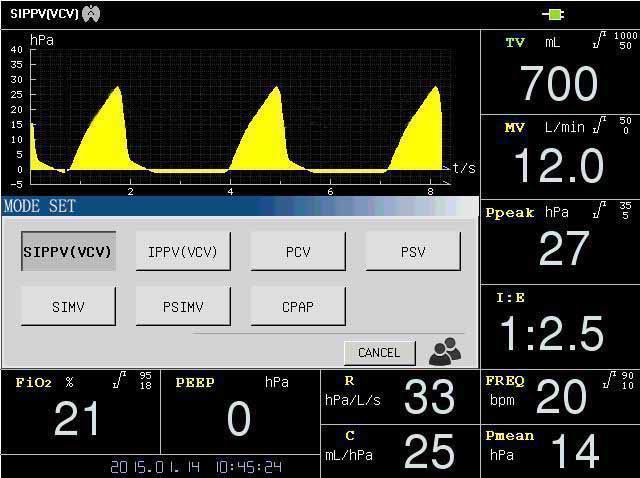

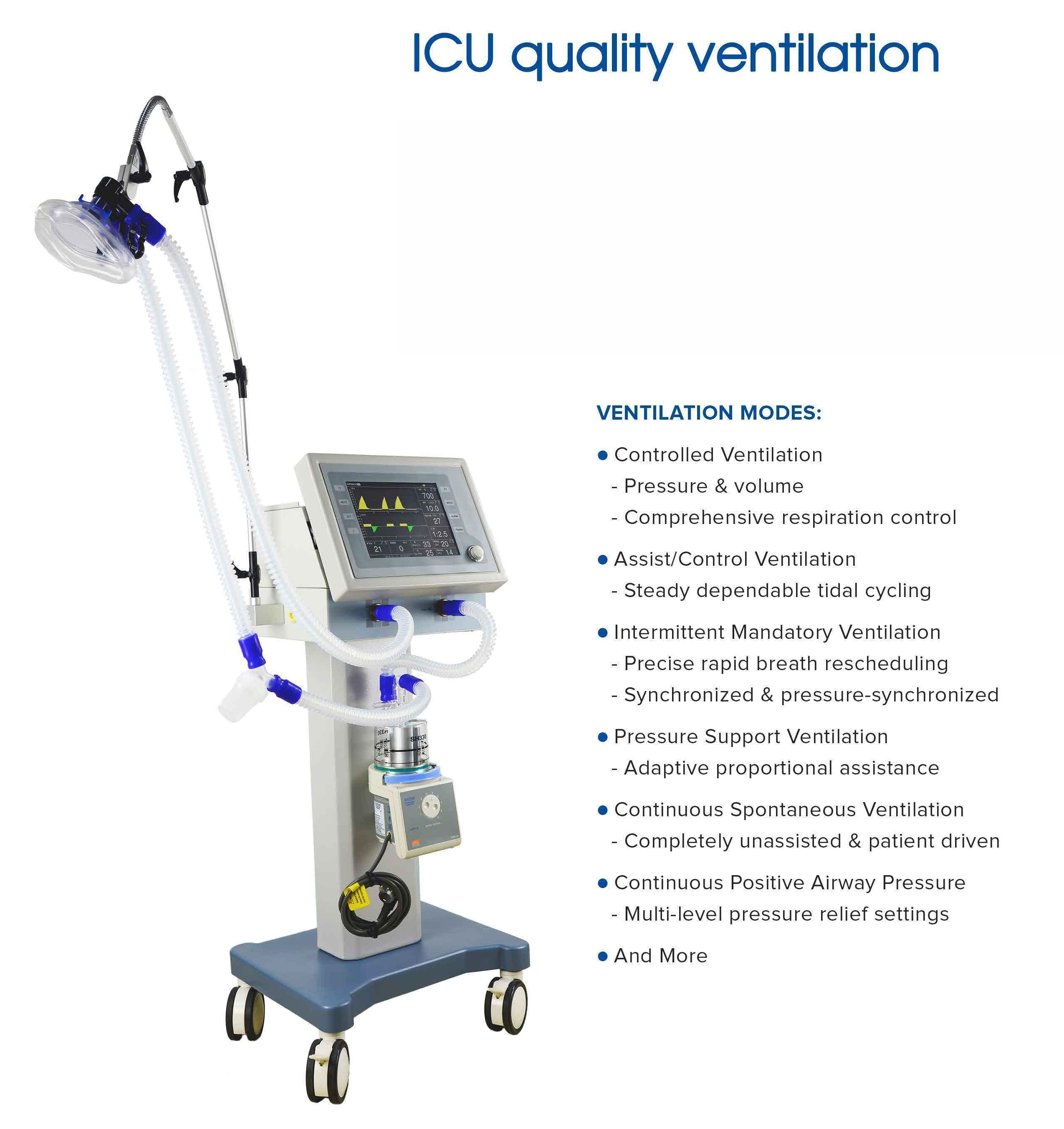

• Common ventilation modes in the ICU include assisted/controlled ventilation (A/C), synchronized intermittent mandatory ventilation (SIMV), and pressure support ventilation (PSV).

• The choice of ventilation mode depends on the patient's condition and the goals of ventilation.

2. Adjust the respiratory rate:

• Set the appropriate respiratory rate based on the patient's age, underlying condition, and metabolic needs.

• Generally, adult patients may require a respiratory rate between 12 and 20 breaths per minute.

3. Set the tidal volume:

• Determine the tidal volume according to the patient's body weight and lung function.

• A typical tidal volume for adults is around 6 to 8 milliliters per kilogram of body weight.

4. Adjust the inspiratory and expiratory times:

• Set the inspiratory time and expiratory time to ensure proper gas exchange and avoid air trapping.

• The ratio of inspiratory time to expiratory time may vary depending on the patient's condition.

5. Set the oxygen concentration:

• Adjust the oxygen concentration to maintain adequate oxygen saturation.

• Start with a higher oxygen concentration if needed and gradually titrate down as the patient's condition improves.

6. Set the positive end-expiratory pressure (PEEP):

• Apply PEEP to prevent alveolar collapse and improve oxygenation.

• The level of PEEP is determined based on the patient's lung compliance and oxygenation status.

IV. Monitoring and adjusting during use

1. Continuously monitor the patient:

• Closely observe the patient's vital signs, including respiratory rate, oxygen saturation, heart rate, and blood pressure.

• Listen to lung sounds regularly to detect any changes in ventilation.

2. Monitor ventilator parameters:

• Keep an eye on the ventilator display to ensure that the set parameters are being maintained.

• Check for any alarms and address them promptly.

3. Adjust settings as needed:

• Based on the patient's response and changes in condition, adjust the ventilator settings as necessary.

• This may include changing the ventilation mode, adjusting the respiratory rate, tidal volume, or oxygen concentration.

4. Assess for complications:

• Be vigilant for potential complications such as barotrauma, volutrauma, and ventilator-associated pneumonia.

• Take appropriate measures to prevent and manage these complication

V. Discontinuing ventilation

1. Assess readiness for weaning:

• When the patient's condition improves, assess their readiness for weaning from the ventilator.

• Criteria for weaning may include stable vital signs, improved lung function, and the ability to breathe spontaneously.

2. Gradual weaning process:

• Reduce the ventilator support gradually by decreasing the respiratory rate, tidal volume, or pressure support.

• Monitor the patient closely during the weaning process to ensure they can tolerate the reduced support.

3. Final discontinuation:

• Once the patient is able to breathe spontaneously without significant distress, remove the ventilator and breathing circuit.

• Continue to monitor the patient's respiratory status and provide appropriate support as needed.

It should be noted that the use of ICU ventilators requires specialized training and expertise. Medical professionals must closely monitor the patient and adjust the ventilator settings as needed to ensure optimal ventilation and patient safety.
