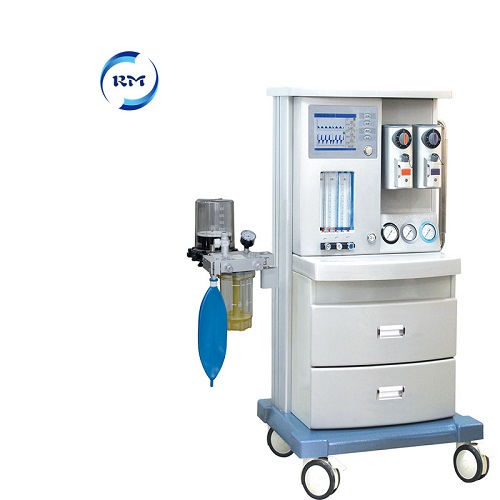

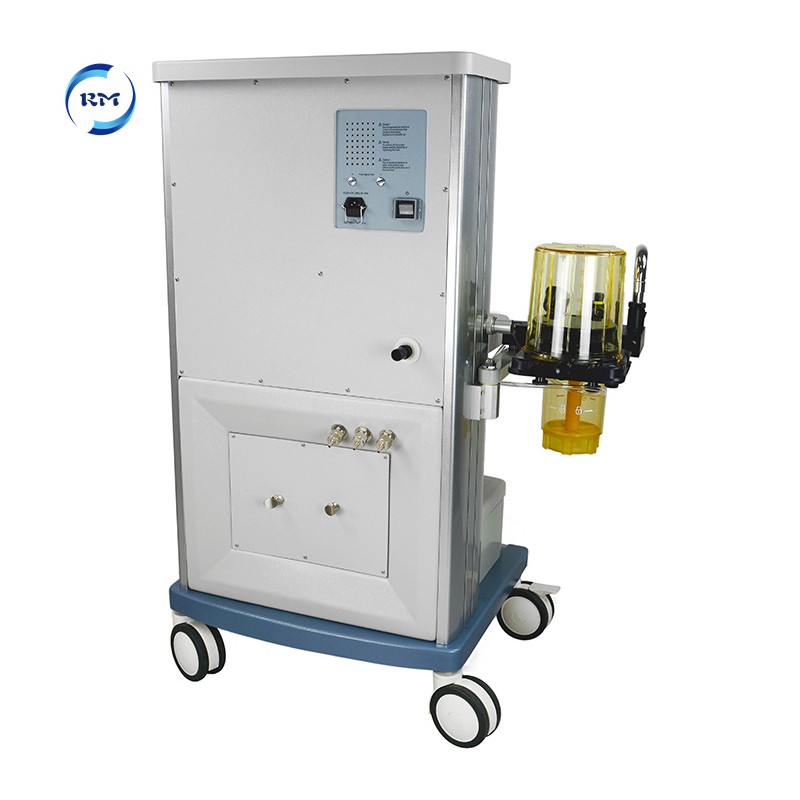

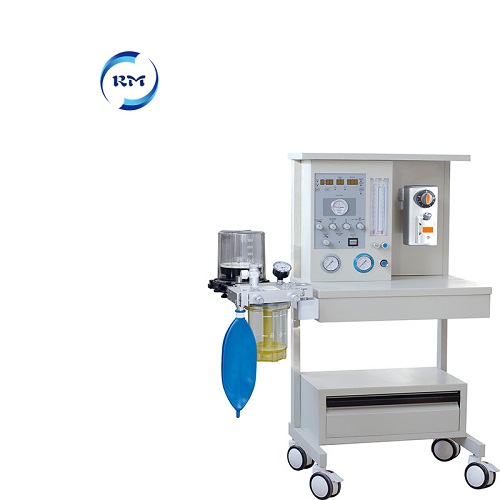

Anesthesia Machine

820 ICU hospital clinic portable anaesthetic machine,anesthesia machine
* Standard integrated metallic modular respiratory circuit; completely solves the problem of gas sealing under high temperature disinfection, easy to clean and disinfect.
* High precision four tube flowmeter, fitted with interlocking oxygen-nitrous oxide supply, guarantees oxygen output is never lower than 21%.
* Nonhazardous environmentally friendly frame, precise construction, elegant design, equipped with automated self-checking function during startup and an automatic self-calibrating sensor.
* Advanced and stable Adjustable Pressure Limiting (APL) valve, suitable for low and ultra low flow anesthesia.
* Equipped with advanced international rotating Na-lime tank, easy-operate, requires only one hand, and uses imported PPSU material and temperature resistant to 134°C.

Anesthesia Machine is a medical device used to deliver anesthesia drug and gas mixture to ensure that the patient's consciousness and physiological state are controlled and maintained during surgery.

It features drug delivery, gas delivery, breathing circuit, monitoring and safety features, all controlled and adjusted by medical personnel through an easy-to-operate interface. Anesthesia machines are vital tools for the surgical team, providing comfortable and safe anesthesia management for patients.

Feature:
1 Operating Modes: Pneumatically driven & electronically controlled, closed, semi-closed and semi-open

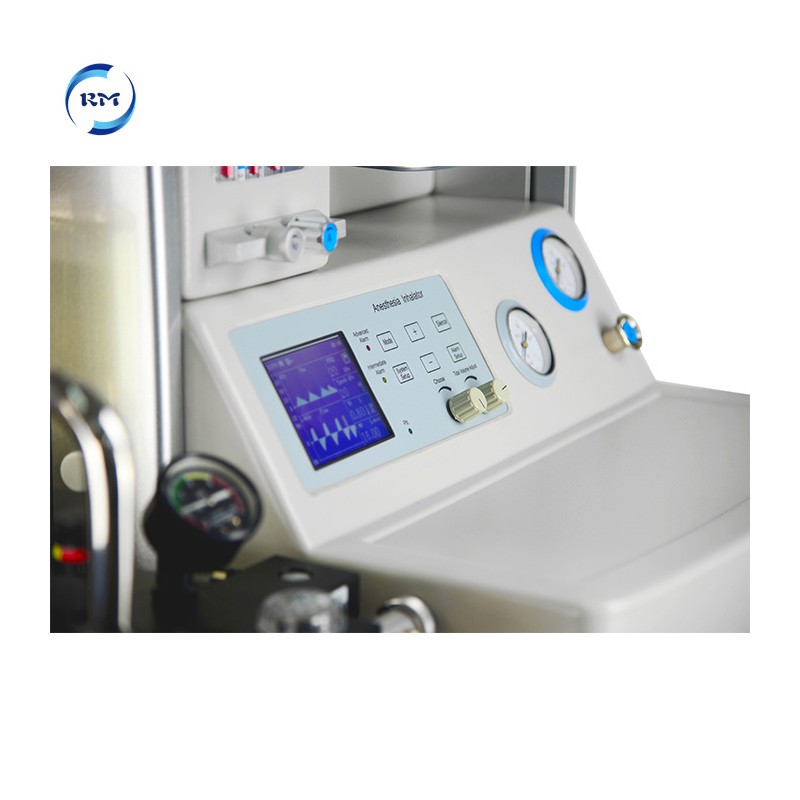

2 Anesthesia Ventilator: Built-in LED display, able-display Pressure-Time and Frequency-Time, displayed waveforms can be cycled instantly with a touch of a button
3 Standard integrated metallic modular respiratory circuit; completely solves the problem of gas sealing under high temperature disinfection, easy to clean and disinfect
4 Nonhazardous environmentally friendly frame, precise construction, elegant design, equipped with automated self-checking function during startup and an automatic self-calibrating sensor
5 High precision four tube flowmeter, fitted with interlocking oxygen-nitrous oxide supply, guarantees oxygen output is never lower than 21%

6 Oxygen failure alarm is supported by the anesthetic gas delivery system; when the oxygen supply within the circuit or cylinder falls below 0.20 MPa, an alarm will sound and the nitrous oxide will be cutoff
7 Power Failure Support Functions: Automatically converts to backup power mode during AC power outages
8 Alarms: Audible and/or visual alarms for tidal volume, airway pressure, power failure, oxygen failure and other alarms, also features a alarm query function
9 Equipped with infrared turbine flow sensor; precisely measures gas flows, stable and reliable

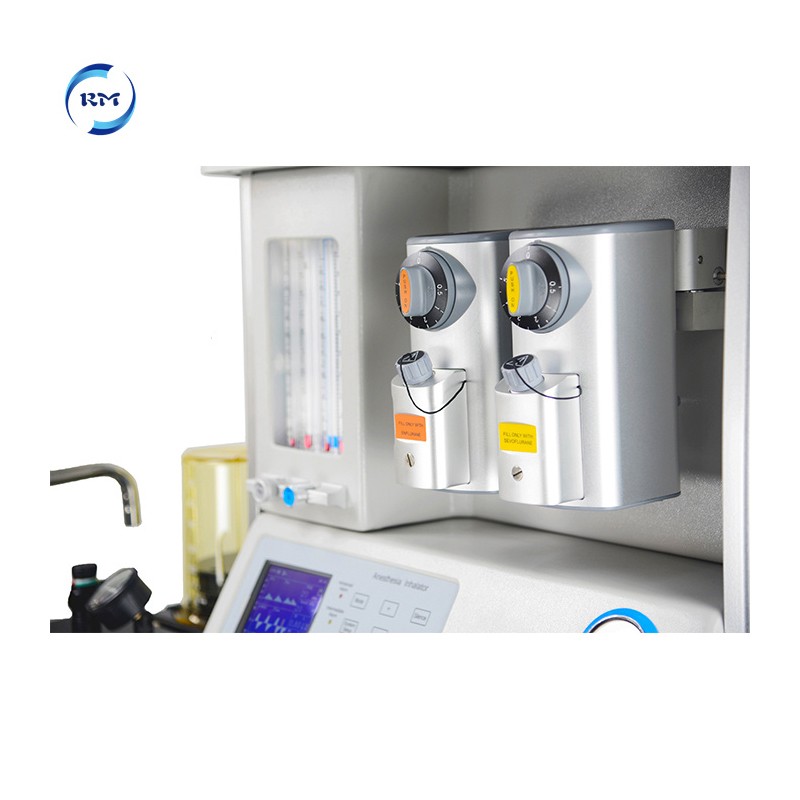

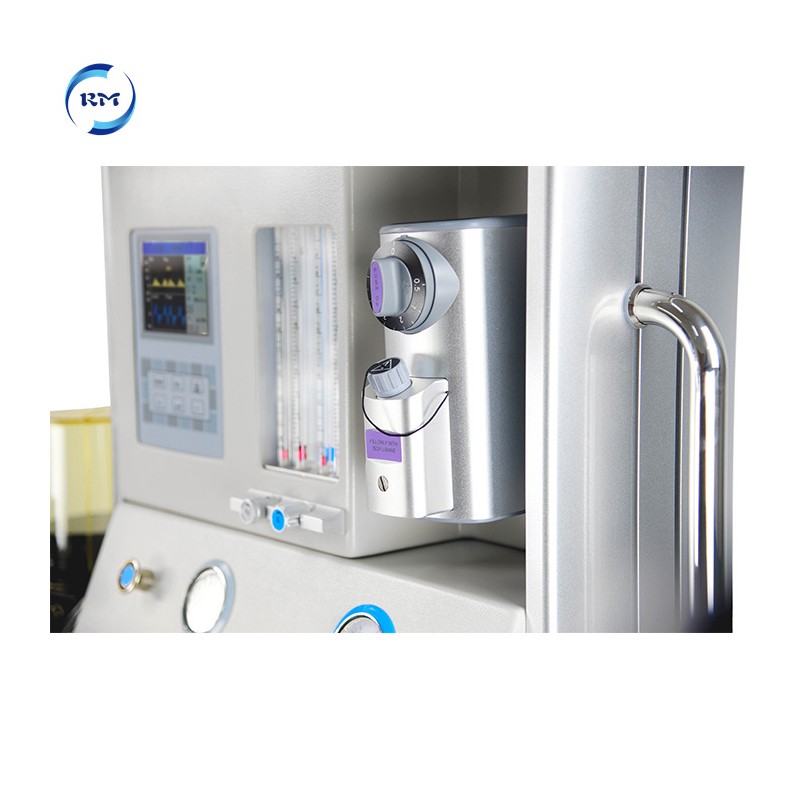

10 Vaporizer: Imported tank components assembled locally; Enflurane, Isoflurane and Sevoflurane (Halothane optional). Also possesses self-compensating functionality

Application:
1. Surgical anesthesia
1)Provide patients with appropriate anesthetic gas
In various surgical operations, the anesthesia machine accurately mixes and delivers different proportions of oxygen, air and anesthetic drugs according to factors such as the type of operation, the patient's physical condition and age, ensuring that the patient is in a painless and unconscious state during the operation, creating good conditions for the operation.
2)Control the patient's breathing
During the operation, the anesthesia machine can control the patient's breathing through mechanical ventilation, set appropriate parameters such as respiratory rate, tidal volume and inspiratory pressure, and ensure the patient's oxygen supply and carbon dioxide discharge.
3) Monitor the patient's vital signs

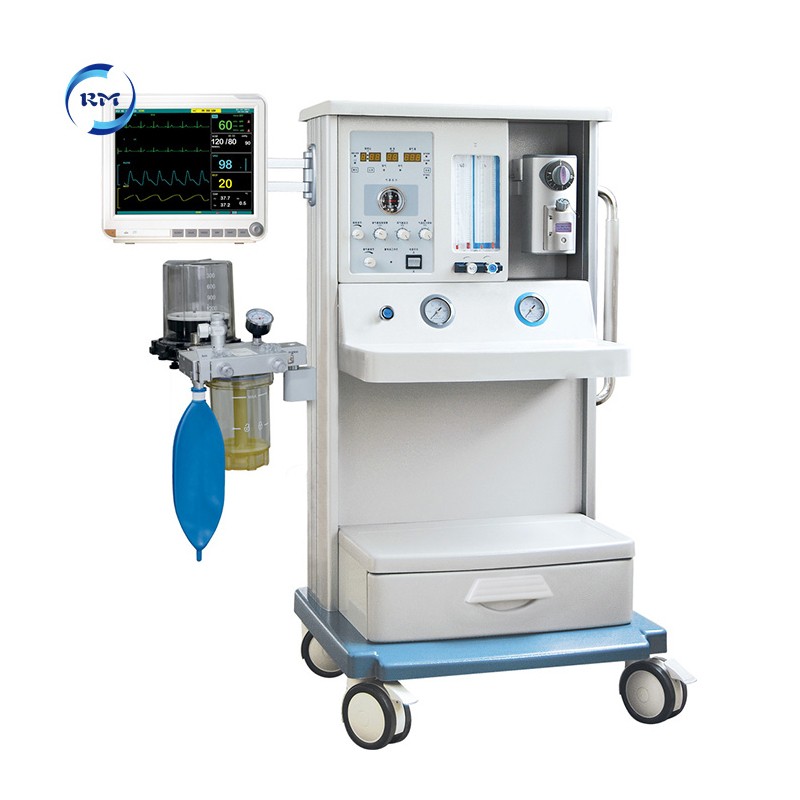

Modern anesthesia machines are usually equipped with a variety of monitoring equipment, such as the patient's vital signs ECG, SpO2, NIBP, ETCO2, etc., providing important reference for anesthesiologists.

2. Critical Care
1) Respiratory Support
In the intensive care unit (ICU), the anesthesia machine can provide respiratory support for patients with respiratory insufficiency, reduce the patient's respiratory burden, and create conditions for the patient's treatment and rehabilitation.
2) Sedation and analgesia
For some critically ill patients who need sedation and analgesia, the anesthesia machine can achieve this by delivering an appropriate amount of anesthetic drugs to keep the patient quiet and cooperate with the treatment.
3) Monitoring and alarm function
The monitoring function of the anesthesia machine in critical care is equally important. It can monitor the patient's vital signs and respiratory parameters in real time, such as heart rate, blood pressure, respiratory rate, tidal volume.
3. Emergency resuscitation
1)Emergency ventilation support
The rapid response and stability of the anesthesia machine can complete the startup and parameter setting of the equipment in a short time, providing effective respiratory support for patients.
2)Drug delivery
During the emergency resuscitation process, the anesthesia machine can deliver emergency drugs through intravenous injection or intratracheal administration to help patients restore heart function and relieve bronchospasm.
